LV116 – Showroom Machine

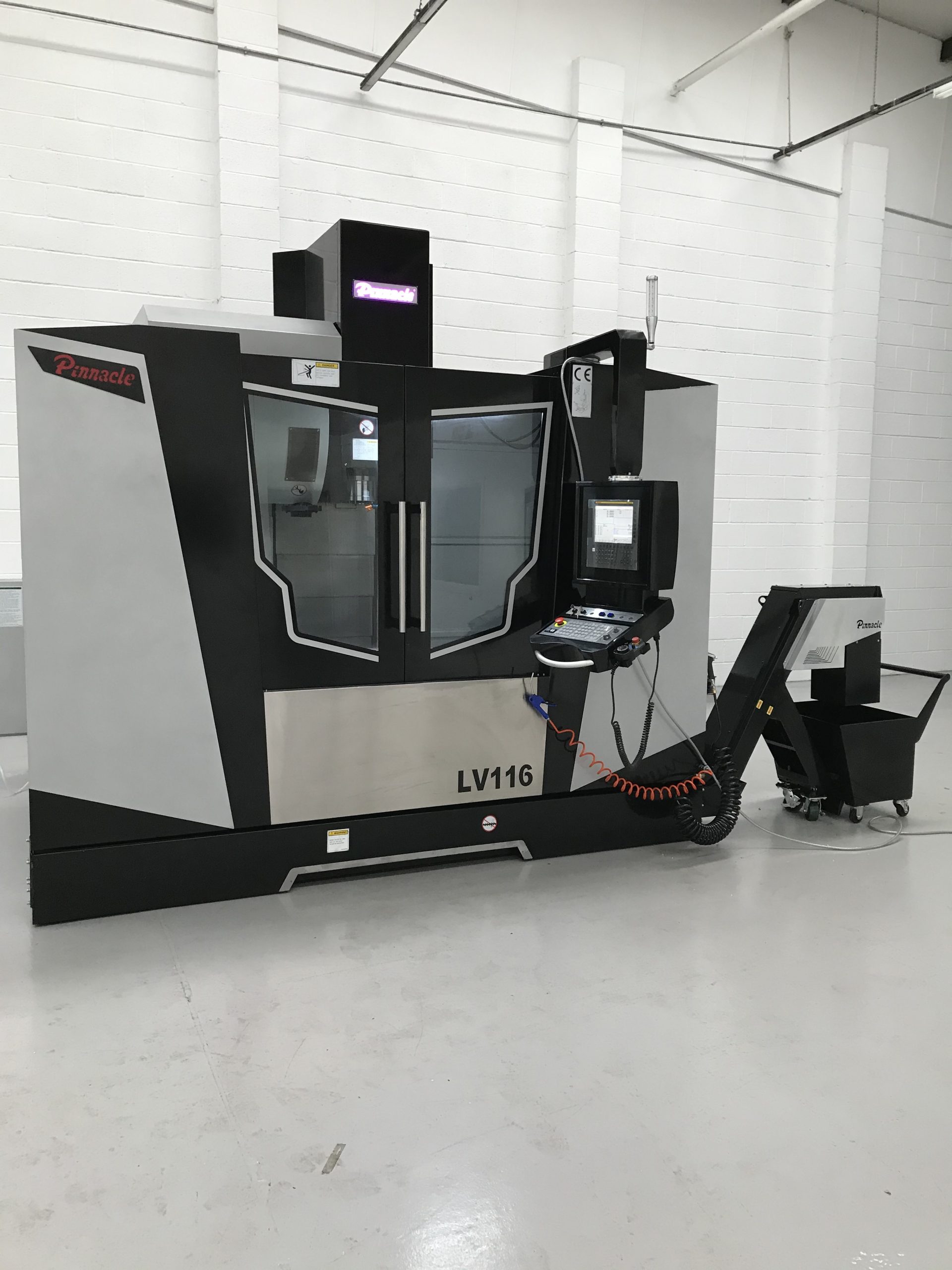

The LV116 Vertical Machining Centre

LV116 – Showroom Machine

Showroom Machine (LV116)

Pinnacle UK have a fantastic LV116 Vertical Machining Centre in stock and ready to go. The LV116 is an excellently equipped Three axis machining centre with the capability of adding a fourth so there is scope to machine variety of parts.

The LV116 Vertical Machining Centre has 1140mm of travel in the X axis, 610mm of travel in the Y axis and 610mm of travel in the Z axis. All three axis are Roller Linear Guideways. This machine comes with one of the most recognisable CNC programming language in the world, FANUC. The 10.4″ colour screen makes editing and writing programs easy. It also comes with a belt driven, BT40 spindle which can reach speeds of 10,000RPM.

As well as all the standard equipment the LV116 normally comes with, e.g. Coolant System, Working Lamp, Operation Light, Auto Lubrication System, Spindle Air Blast and Spindle Oil Cooler/Flushing System, it has been upgraded to include:

a15i/7000rpm (18.5kW/30min) Spindle motor
BT40, 10000RPM, Belt Type
Coolant Through Spindle (CTS) + 20 Bar (no sub tank),
Chain Type Chip Conveyor
Arm-24T (BT40, max. diameter 90mm)
4th axis wiring prepare

This machine is ready and available to view in our UK showroom. We have many more pictures and videos of the machine in action. If you are interested in finding out more information, seeing some more pictures or coming to view the LV116, then please get in touch to arrange a viewing. Even if you not in the market for a new machine and are just curious to find our more about the Pinnacle range, you are welcome to come and have a look.

The Pinnacle LV116 Vertical Machining Centre is available with a Halter CNC Automation Robot loading system which allows the machine to run lights out for optimum efficiency and profitability. To find out more about auto loading systems speak to one of our team who will be happy to help.
